Abstract
LED driver testers play a pivotal role in ensuring the performance, safety, and compliance of LED power drivers, which are critical components in LED lighting systems. This article provides an in-depth analysis of the LED driver tester, focusing on the LISUN LS2090 LED Power Driver Tester—a cutting-edge instrument designed to meet international standards such as IEC 62384:2006 and GB/T 24825-2009. It explores the device’s technical specifications, functional capabilities, application scenarios, and comparative advantages, supported by detailed data tables and practical insights. By examining its role in testing input/output characteristics, harmonic analysis, and displacement factor (DF) measurement, this paper highlights the importance of advanced LED driver testers in promoting the reliability and efficiency of LED lighting products.
1. Introduction to LED Driver Tester
1.1 What is an LED Driver Tester?
An LED driver tester is a specialized instrument designed to evaluate the electrical performance, safety, and compliance of LED power drivers (also known as LED control gears). These drivers are responsible for regulating the power supplied to LED modules, ensuring stable operation and extending the lifespan of LED lights. As LED lighting becomes increasingly prevalent in residential, commercial, and industrial applications, the need for accurate and comprehensive testing of LED drivers has grown significantly.
LED driver testers typically measure parameters such as input voltage/current, output voltage/current, power factor, harmonic distortion, and displacement factor. They help manufacturers and researchers validate whether LED drivers meet international standards, identify design flaws, and optimize performance. The LISUN LS2090 LED Power Driver Tester, as a leading model in this field, exemplifies the advanced capabilities required for modern LED driver testing.
1.2 Importance of LED Driver Testing
Compliance with Standards: Standards like IEC 62384:2006 (international) and GB/T 24825-2009 (China) specify strict performance requirements for LED drivers. Testing ensures products meet these regulations, facilitating market access and consumer trust.
Performance Optimization: By analyzing parameters like power factor and harmonic distortion, testers help improve energy efficiency and reduce electromagnetic interference (EMI).
Quality Assurance: Comprehensive testing identifies defects early in the production cycle, minimizing costly recalls and enhancing product reliability.

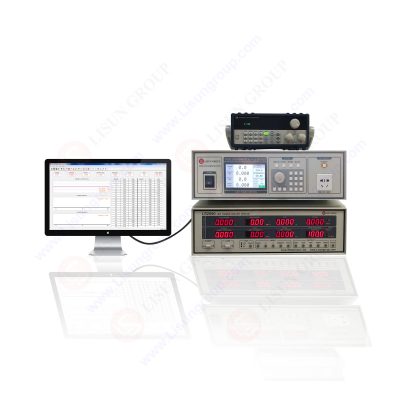

LS2090_LED Test Driver
2. LISUN LS2090 LED Power Driver Tester: Key Features and Specifications
The LISUN LS2090 is a high-precision LED driver tester designed for comprehensive testing of LED power drivers. Developed by LISUN Group, a renowned provider of lighting test instruments, the LS2090 combines advanced hardware with user-friendly software to deliver accurate and efficient testing results. Below is a detailed breakdown of its features:
2.1 Technical Specifications
Table 1: Input Characteristics Test (AC)
Parameter
Range
Measurement Accuracy
Frequency Scope
Voltage
3–300 V (CF=1.67)
±0.2% of reading
45 Hz–65 Hz (fundamental)
Current
5 mA–2.7 A (CF=3)
±0.2% of reading
45 Hz–1 MHz (broadband)
Power
0.015–800 W
±0.2% of reading
–
Power Factor
0.000–1.000
±0.005
–
Table 2: Input Characteristics Test (DC)
Parameter
Range
Measurement Accuracy
Voltage
3–500 V
±0.2% of reading
Current
5 mA–8 A
±0.2% of reading
Power
0.015–4000 W
±0.2% of reading
Table 3: Output Characteristics Test (AC)
Parameter
Range
Measurement Accuracy
Lamp Voltage
3–300 V (CF=3)
±0.2% of reading
Lamp Current
5 mA–2.7 A (CF=3)
±0.2% of reading
Lamp Power
0.015–800 W
±0.2% of reading
Table 4: Output Characteristics Test (DC)
Parameter
Range
Measurement Accuracy
Additional Feature
Output Voltage
3–500 V
±0.2% of reading
Ripple current: 5 mA–2.5 A
Output Current
5 mA–8 A
±0.2% of reading
–
Output Power
0.015–4 kW
±0.2% of reading
–
Table 5: Output Start Characteristics Test (DC)
Parameter
Range
Time Frame
Measurement Focus
Lamp Voltage
3–500 V
0–2 seconds
Voltage rise curve
Lamp Current
5 mA–8 A
0–2 seconds
Current surge characteristics
Table 6: Harmonic Testing Capabilities
Test Item
Scope
Measurement Accuracy
Total Harmonic
Up to 50th harmonic
±5% of reading (for THD)
Harmonic Components
0–50 times fundamental frequency
±3% of reading (per component)
Phase Angles
Initial, peak, and phase angles
±1°
Table 7: Displacement Factor (DF) Testing
Parameter
Range
Accuracy
Displacement Factor
0.000–1.000
±0.005
2.2 Functional Capabilities
2.2.1 Multi-Mode Testing
The LS2090 supports both AC and DC input/output testing, making it versatile for different types of LED drivers. For example:
AC Input Testing: Measures voltage, current, power, power factor, and frequency for drivers powered by alternating current.
DC Output Testing: Evaluates DC voltage, current, power, and ripple current, which are critical for ensuring stable LED operation.
2.2.2 Harmonic Analysis
In compliance with IEC 61000-3-2 (for the LS2090-IEC variant), the tester analyzes harmonic distortion up to the 50th order. This is essential for identifying non-linear loads that may cause EMI or violate energy efficiency standards.
2.2.3 Displacement Factor (DF) Measurement
As an upgraded version of the WT2080, the LS2090 introduces DF testing, which measures the phase difference between voltage and current in AC circuits. This helps assess the reactive power component and improve overall power efficiency.
2.2.4 System Integration
The LS2090 is typically used with two auxiliary devices:
LISUN LSP-500VARC Pure Sine AC Power Source: Provides adjustable, stable AC power for the driver under test.
LISUN M9822 DC Electronic Load: Simulates the LED source, allowing realistic load testing.
This integrated system ensures accurate and controlled testing conditions, mimicking real-world operational environments.
2.2.5 Software Compatibility
The accompanying software runs on Windows 7, 8, 10, and 11, offering features like:
• Real-time data visualization
• Automated report generation
• Data logging and historical trend analysis
• Compliance with multiple international standards
3. Applications of the LS2090 LED Driver Tester
3.1 Industrial Quality Control
In manufacturing facilities, the LS2090 is used to test every batch of LED drivers for compliance with standards like IEC 62384 and GB/T 24825. This ensures that only high-quality drivers reach the market, reducing the risk of failures in LED lighting systems.
3.2 Research and Development
For R&D teams, the tester helps optimize driver designs by providing detailed insights into performance metrics. For example:
Analyzing startup characteristics (voltage and current curves within 0–2 seconds) can reveal inefficiencies in power supply design.
Harmonic analysis aids in minimizing EMI, the critical factor in designing drivers for sensitive environments like healthcare or aviation.
3.3 Regulatory Compliance Testing
The LS2090-IEC variant, with additional software (requiring a premium), fully meets EN/IEC 61000-3-2:2019 for harmonic emission standards. This makes it ideal for certification laboratories testing products for market entry in regions like the EU and China.
4. Comparative Advantages of the LS2090 Over Competitors
4.1 Enhanced Testing Capabilities
Compared to its predecessor, the WT2080, the LS2090 adds DF testing and expands harmonic analysis capabilities. Table 8 below highlights key improvements:
Table 8: LS2090 vs. WT2080
Feature
WT2080
LS2090
Displacement Factor (DF)
Not supported
Supported
Harmonic Orders
Up to 39th
Up to 50th
DC Output Ripple Test
Limited precision
Advanced ripple analysis
Software Compatibility
Windows 7/8 only
Windows 7/8/10/11
4.2 Versatility and Scalability
The LS2090’s ability to work with both AC and DC systems, along with its expandable hardware (e.g., compatibility with the LSP-500VARC and M9822), makes it suitable for a wide range of applications. Unlike single-function testers, it offers a comprehensive suite of tests in a single device, reducing the need for multiple instruments.
4.3 User-Friendly Interface
The intuitive software interface and automated report generation streamline the testing process, saving time for technicians and engineers. Additionally, LISUN provides extensive after-sales support, including a detailed FAQ page that addresses common issues and troubleshooting steps.
5. Challenges and Future Trends in LED Driver Testing
5.1 Emerging Standards and Regulations
As LED technology evolves, so do testing standards. For example, the growing adoption of smart LED drivers (with integrated IoT features) requires testers to evaluate additional parameters like wireless communication stability and energy management capabilities. The LS2090’s modular design positions it well to adapt to future upgrades, such as integrating wireless testing modules.
5.2 Demand for Higher Efficiency and Miniaturization
With LED drivers becoming smaller and more energy-efficient, testers must achieve higher precision in measuring low-power parameters. The LS2090’s ability to measure currents as low as 5 mA and powers as low as 0.015 W addresses this trend, ensuring accurate testing for compact and energy-saving designs.
5.3 Automation and AI Integration
The future of LED driver testing may involve greater automation, such as AI-driven predictive analytics to identify potential failures before they occur. LISUN’s focus on software innovation suggests that future versions of the LS2090 may incorporate machine learning algorithms to optimize testing protocols and reduce human error.
6. Conclusion
The LED driver tester, exemplified by the LISUN LS2090 LED Power Driver Tester, is indispensable for ensuring the reliability, efficiency, and compliance of LED power drivers. Through its advanced features—including multi-mode testing, harmonic analysis, and DF measurement—the LS2090 meets the rigorous demands of modern LED manufacturing and R&D. As the LED industry continues to evolve, instruments like the LS2090 will play a crucial role in driving innovation, enhancing product quality, and supporting the global transition to sustainable lighting solutions. https://www.lisungroup.com/news/technology-news/a-comprehensive-overview-of-led-driver-tester-unveiling-the-lisun-ls2090-led-power-driver-tester.html
